Suction Cups Explained: Types, Uses and How to Choose One
28/08/2026
For tilers, the right tools can make the difference between a clean, efficient installation and a job filled with unnecessary hassle. When working with large-format tiles, slabs, glass, or other smooth materials, suction cups are one of the most useful tools to have in your kit.
In this guide, we explain the main types of suction cups, where they are used, and what to consider when choosing one for tiling work.
What Is a Suction Cup Used For in Tiling?
A tile suction cup creates an airtight seal against a flat, non-porous surface. Once the air is pushed out, atmospheric pressure holds the cup firmly in place, giving you a secure handle to lift, carry, position, or manoeuvre materials that would otherwise be difficult or dangerous to hold.
For tilers, suction cups are particularly useful when handling large or heavy tiles that are difficult to grip by hand. They can help improve control while reducing the effort required to move the material.
Types of Suction Cup
Not all suction cups are built the same, and the right choice depends on the weight, size and surface of what you're lifting. At Pro Tiler Tools, we stock a wide range of suction cups, including Vacuum Suction Cups, Electric Tile Lifters and Suction Clamps.
1.Vacuum Suction Cups
A vacuum suction cup is a tool that grips a smooth surface by creating a low-pressure area (vacuum) between the suction cup and the material. In simple terms, when you press the rubber cup against a smooth surface and remove the air underneath it, the higher air pressure outside the cup pushes it firmly against the surface. This creates a temporary but strong grip.
These are ideal for lighter tiles, smaller format porcelain, or quick positioning tasks where you just need an extra grip point.
£169.80 INC VAT
£80.39 INC VAT
£91.80 INC VAT
£23.99 INC VAT
2. Electric Tile Lifters
An electric suction cup is a suction lifting tool that uses a battery-powered electric vacuum pump to create and maintain suction against a smooth surface. Unlike a traditional suction cup, where you create the vacuum manually with a lever or pump, an electric model uses a motor to generate the vacuum.
These are typically used for the largest slabs or when lifting needs to be sustained over longer periods, such as during transport or installation of oversized formats.
£130.20 INC VAT
£239.99 INC VAT
£118.79 INC VAT
£164.39 INC VAT
3. Suction Clamp
A suction clamp is a tool that combines a suction cup with a clamping or gripping mechanism to hold a smooth, non-porous surface securely. For tilers, suction clamps are commonly used to grip, lift, position, and adjust large-format tiles and porcelain slabs without needing to get fingers underneath the material.
£23.99 INC VAT
£39.59 INC VAT
£11.99 INC VAT
£15.00 INC VAT
How to Choose a Suction Cup
A good suction cup provides a secure grip, helping you lift, position, carry, and adjust heavy or awkward tiles with greater control. They vary in design, lifting capacity, handle configuration, and the surfaces they can grip. Several factors should be considered when you choose a suction cup such as:
1. Check the Weight Rating
Every suction cup has a maximum load rating, usually stated in kilograms. Always choose a cup rated well above the actual weight of your tile or slab, particularly for large format porcelain, which can be significantly heavier than it looks. Undersizing your suction cup is the single biggest cause of dropped materials on site.
For example, the Sigma Aluminium Suction Cup is ideal for smooth tiles and has a maximum lifting capacity of 50 kg, while the Rubi GSC-200 Vacuum Cup is better suited for handling large-format tiles and can lift up to 110 kg.
2. Consider the Tile Surface
Suction cups work best on clean, smooth, non-porous surfaces. Dust, grout residue, moisture, textured finishes, uneven surfaces, and contaminants can reduce the seal and affect holding performance. Before attaching the cup, make sure both the suction pad and the tile surface are clean.

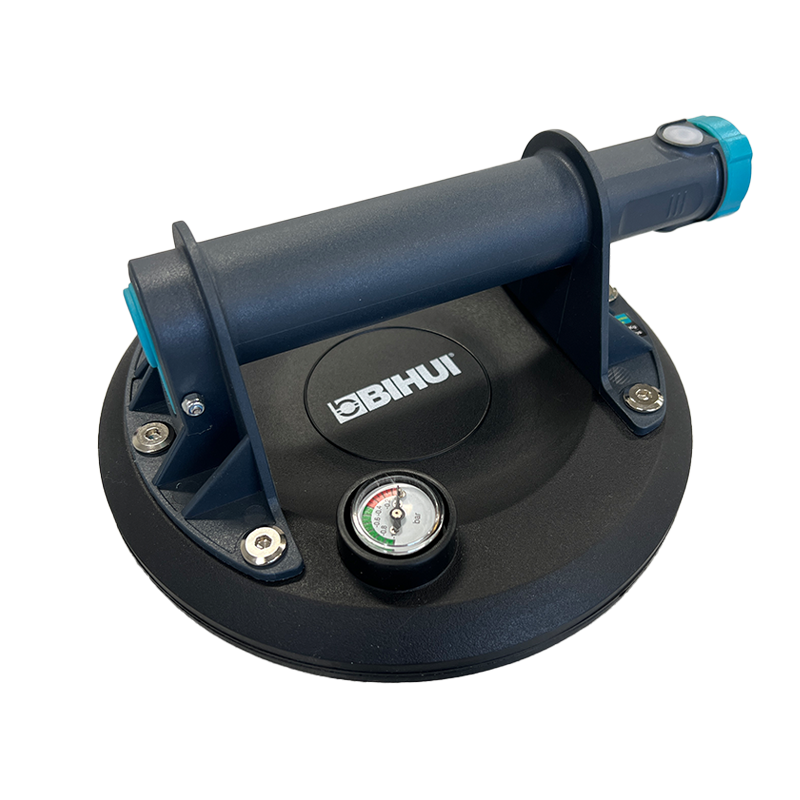

Some tiles may have textured or structured finishes that are unsuitable for conventional suction cups. Bihui Pro 120 Slim Auto Electric Vacuum Suction Cup is an ideal choice to deal with both suitable for smooth and textured surfaces.
3. Choose the Right Number of Cups
For smaller tiles, one suction cup may be enough. Larger tiles generally benefit from two or more gripping points. A multi-cup system can provide greater stability, particularly when transporting large-format tiles horizontally or vertically. The number of cups you need will depend on the tile's dimensions, weight, rigidity, and the manufacturer's recommendations.
According to RUBI, the single suction cup, with a maximum load capacity of 40 kg, is ideal for handling large-format ceramic tiles, glass panels, and other materials. Meanwhile, the RUBI double suction cup features a high-strength aluminium chassis and an ergonomic handle, with a maximum load capacity of 80 kg. For extra-large ceramic tiles, glass panels, and other large elements, the RUBI triple suction cup offers a maximum load capacity of 100 kg, making it ideal for demanding handling applications.
4. Think About Frequency of Use
If you're an occasional DIYer fitting a bathroom, a basic single suction cup will likely cover your needs. If you're a working tiler handling large format porcelain on a regular basis, investing in a pump-action or twin-cup lifter will pay for itself in reduced breakages and faster, safer handling.
Below are some examples of suction cups, along with their recommended uses and suitable applications.
Usage time | Charging time | Lift Capacity | Suction Diameter | Best for | |
Rubi SC-200 Suction Cup With Vacuum Pump 18919  | N/A - pump action | N/A - pump action | 110kg | 200mm | It is recommended for smooth & rough surfaces |
Montolit GECONE Professional Battery Powered Tile Suction Cup  | Non-stop 8-hour operation | 3 hours | Up to 150 kg horizontally and 80 kg on walls. | 270mm x 155mm | It is designed to suit any surface |
Bihui All Electric Suction Cup BU-SCBC8  | 2 hours | 3 hours | 140kg | 220mm | It is suitable for large & heavy tiles. It is also recommended for grip smooth & textured surfaces. |
Raimondi RV BATTERY+ Battery Vacuum Suction Cup 185WA02VRVBR1  | 1,500 on/off cycles per charge | N/A | 130kg | 175mm | It is used for both rough and smooth tiles and other materials. |
How to Use a Suction Cup
Using a suction cup correctly is just as important as choosing the right one.
Before lifting, inspect the suction pad for dirt, damage, cracks, or excessive wear. Clean the tile surface and ensure it is suitable for vacuum attachment.
During the process, place the cup firmly against the surface and engage the locking or pumping mechanism according to the manufacturer's instructions. Check that the cup has established a secure vacuum before lifting.
When handling large-format tiles, use the appropriate number of people and lifting equipment for the material. A suction cup should not be treated as a substitute for a suitable team lifting method when the tile is too large or heavy for one person.
Most importantly, never exceed the manufacturer's rated capacity.
